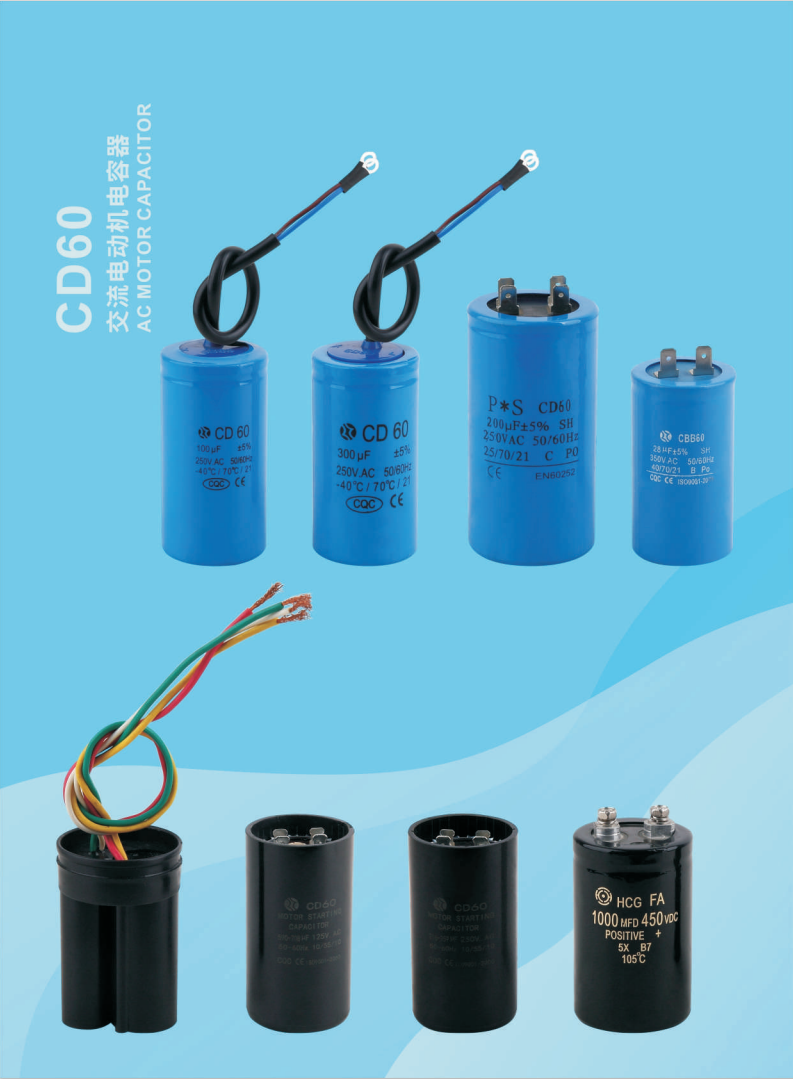

CD60
交流电动机电容器
AC MOTOR CAPACITOR
电机运行电容器特点：
这种电容器是根据美国电子协会(ANSI/EIA-463)标准研制的，其外壳为胶木塑化，其特点不仅绝缘电阻好，耐磨耐腐蚀，而且具有保护电液良好的密封性。由于具有良好的寿命、较高的可靠性和稳定性，广泛应用于超高压交流场合。
适用范围：
电动机起动电容器是一系列交流电解电容器。这些电容器通常用于提供起动交流电动机和其他间歇性交流应用中所需的扭矩
产品特征：
拖拽25”，6.35mm 快速连接端子
圆形防潮耐油塑料外壳
快速断开端子
嵌入式终端
寿命长，可靠性高
Motor run capacitors features：
This kind of capacitors are developed and researched according to standard of American Electronics Association(ANSI/EIA-463).The externalcase of the capacitor is make of bakelite plasticized that its character arenot only good insulating resistance and strong resistance damaged but also protecting electro-liquid as good sealed feature.
It is popular used for thesuper AC application as good life higher degree of reliability and stability.
Usage method：
The motor start capacitor is range of AC electrolytic capacitors.These capacitors are most often used to provide the torque necessary to start Acmotors and in other intermittent AC applications.
Features：
Tow 25″,6.35mm.Quick connect terminals
Round moisture and oil resistant plastic case
Quick disconnect terminals
Recessed terminals
Long life and high reliability
技术与性能指标
| 环境温度 | -10-+60℃ |
| 额定电压 | 100V-330V |
| 额定电容 | 21-1280mfd |
| 损耗角正切 | tanσ≤0.001(50Hz) |
| 电容额定公差 | 0-±20% |
| 端子间电压 | 施加1.2倍工作电压2S， 不会发生故障或爆炸 |
| 端子与外壳间的耐受电压 | 2000伏交流电，持续10秒， 不会发生故障或爆炸 |
TECHNICAL DATA
| Operating temperature | -10-+60℃ |
| Rated voltage | 100V-330V |
| Rated capacitance | 21-1280mfd |
| Dissipation factor | tanσ≤0.001(50Hz) |
| Rated tolerance of capacitance | 0-±20% |
| Without voltage between terminal | Apply 1.2 times working voltage for 2S Without break down or explosion |
| Withstand voltage between terminal and case | 2000VAC for 10seconds without break down or explosion |
